FEATURES

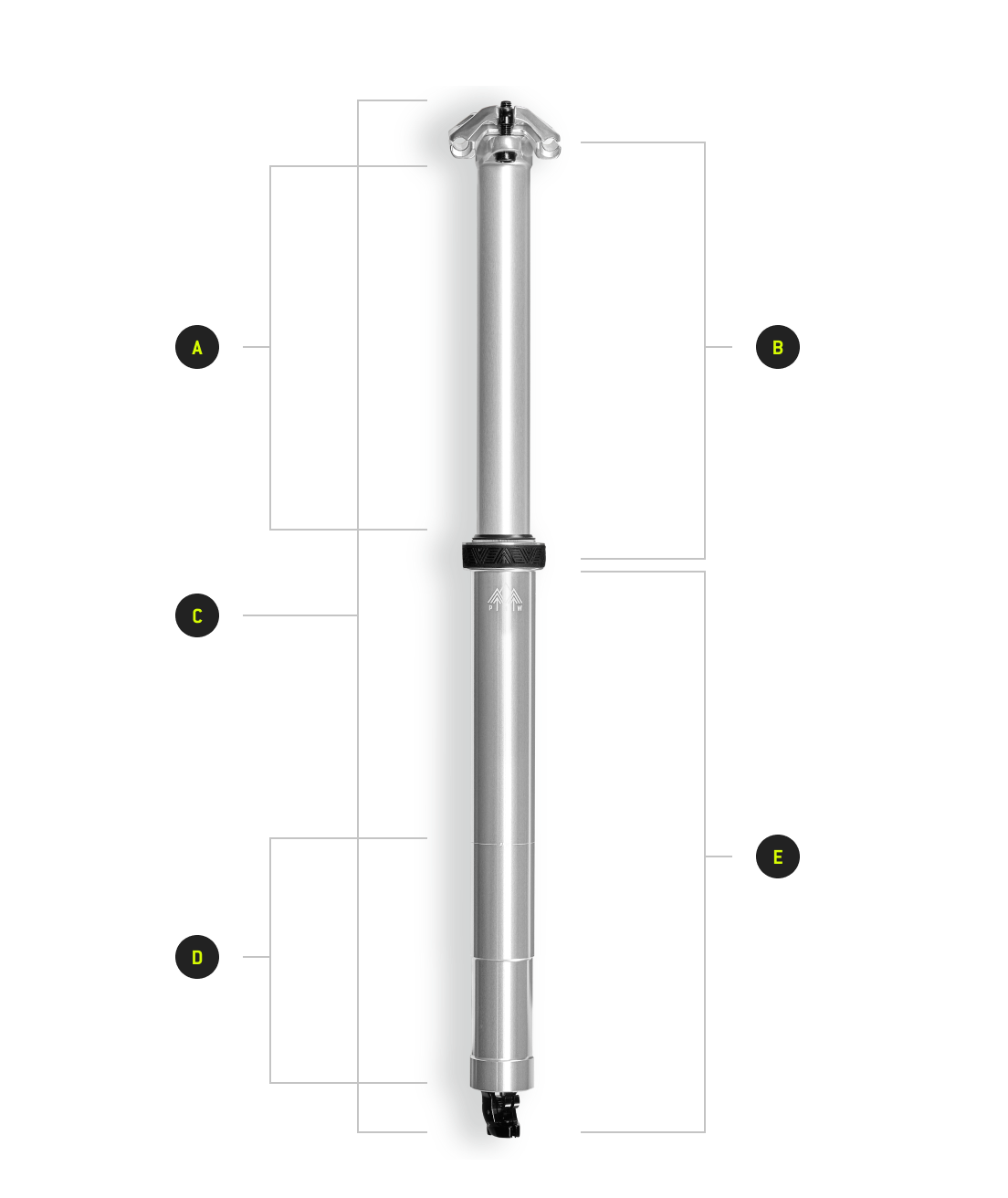

A | Travel | 125mm | 150mm | 175mm | 200mm | 225mm |
B | Seat Collar to Center of Rails | 156mm | 181mm | 206mm | 231mm | 256mm |
C | Total Length | 382mm | 345mm | 485mm | 537mm | 600m |
D | Min. Insertion Length | 90mm | 90mm | 120mm | 150mm | 190mm |
E | Full Insertion Length | 226mm | 254mm | 279mmm | 306mm | 344mm |
* | 30.9 Weight | 452g | 490g | 524g | 560g | 614g |
* | 31.6 Weight | 470g | 510g | 544g | 580g | 636g |
* | 34.9 Weight | 516g | 556g | 596g | 636g | 700g |

QUESTIONS?
Cartridge: PNW Dual-Chamber Sealed Cartridge
Routing Method: Internal
Diameters: 30.9mm, 31.6mm. 34.9mm
Weight: 452g-700g (depending on size)
Travel: 125mm, 150mm, 175mm, 200mm, 225mm
Stanchion Diameter: 30.9mm & 31.6mm: 26mm, 34.9: 29mm
Lever Compatibility: Compatible with all PNW levers and most cable-actuated levers from other brands.

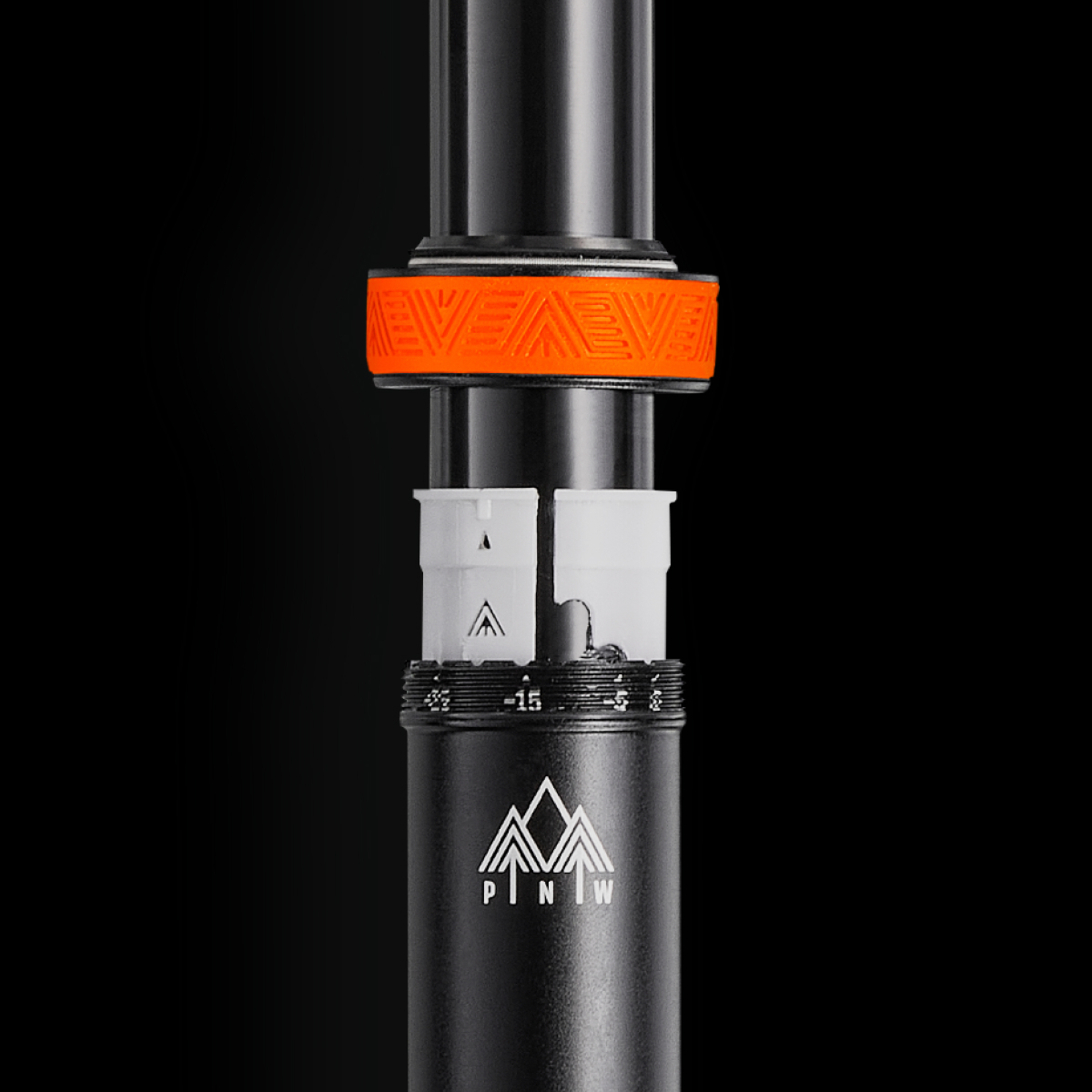

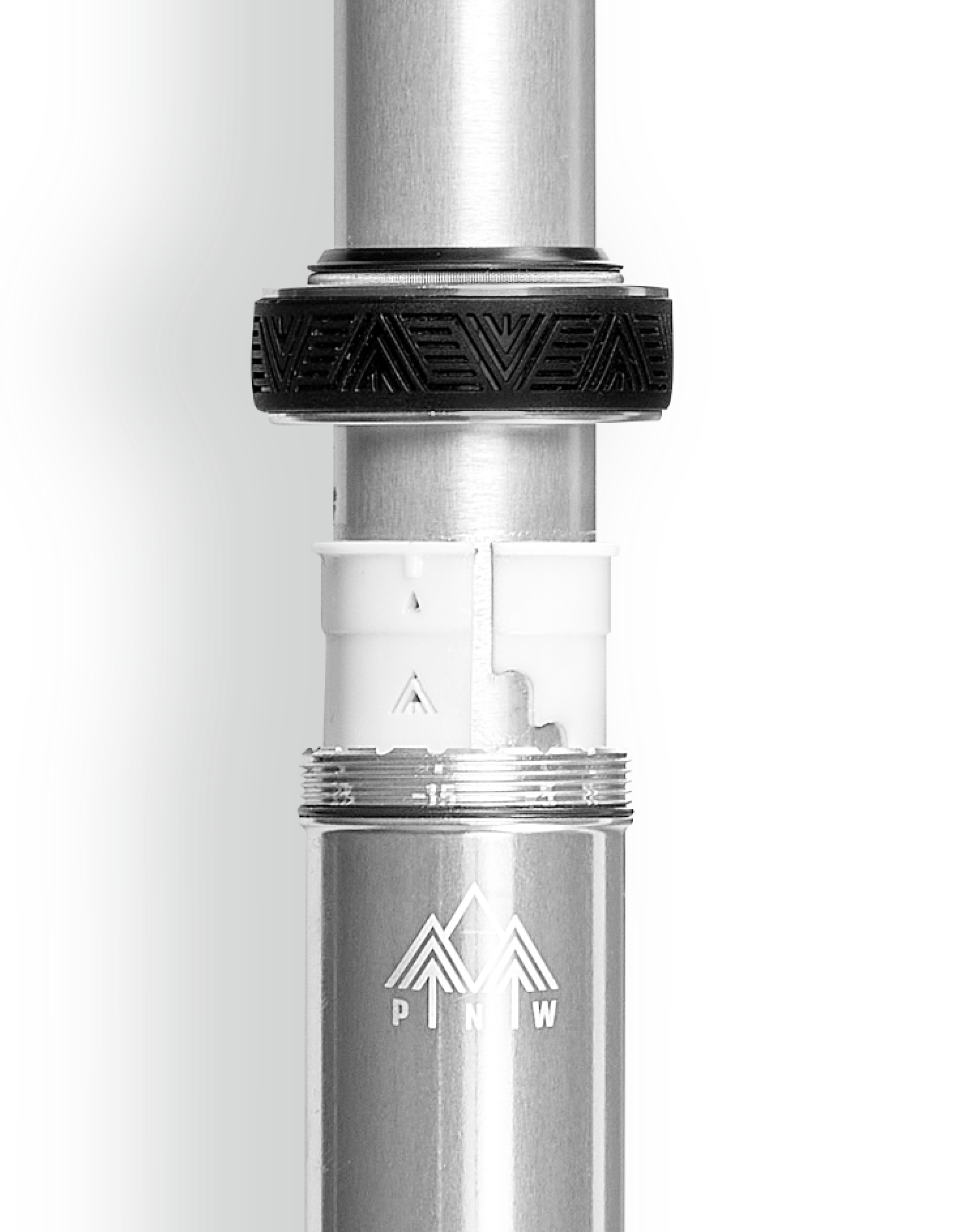

25mm of tool-less travel adjust in 5mm increments hits every 5mm increment between 100 and 225
Using the Dropper without the white nylon Travel Adjust bushing can lead to damage to the dropper and will void the warranty. It is required for the proper function of the post. If your Travel Bushing is damaged, please contact us at info@pnwcomponents.com for a replacement.
Start by checking if your bike is externally or internally routed. The Loam is only compatible for internally routed frames. Second check the seat tube diameter. Want help finding the right dropper for your bike? Click here >>>
As riding frequency and conditions vary, we do not have a strict service interval. Instead, we recommend servicing your post if it starts to feel sticky/slows down. When it does come down to service it is a quick and easy, at home process. Check out our service video's here.
Like most of us, PNW dropper posts need a little TLC to work their best. This service can be done at home, but if you're not feeling that grease stain life, we can take care of it for you. Our service program treats your PNW dropper post for regular wear and tear. Learn More >>>
